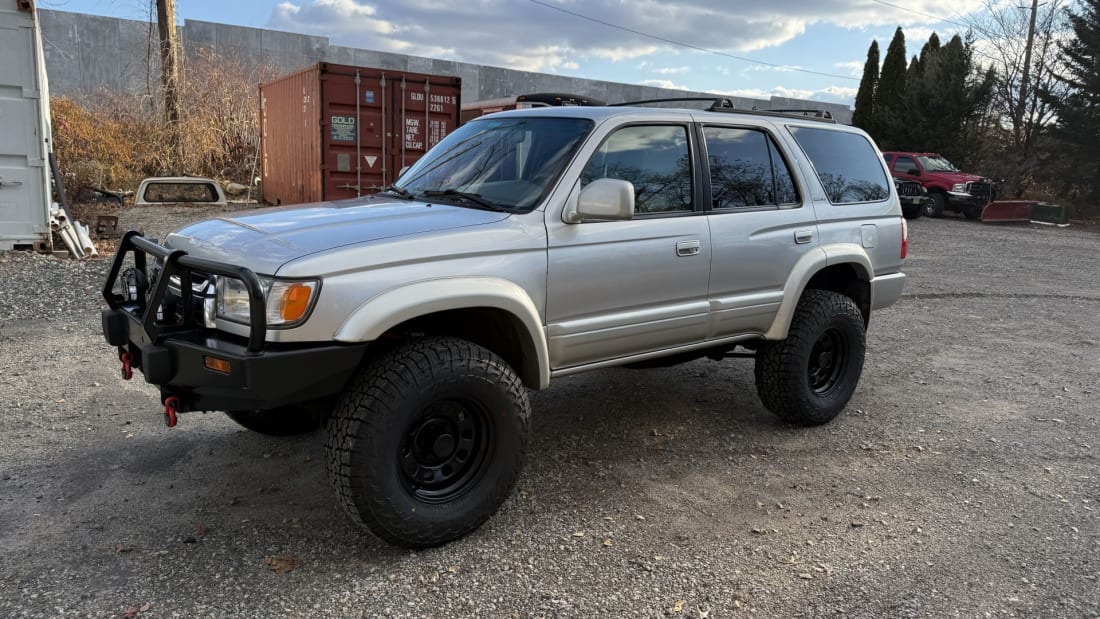

3rd Gen 4Runner Lift Kit 5100 1.5-3 Inch Lift

Includes:

• (2) Front and (2) Rear Lifting Springs

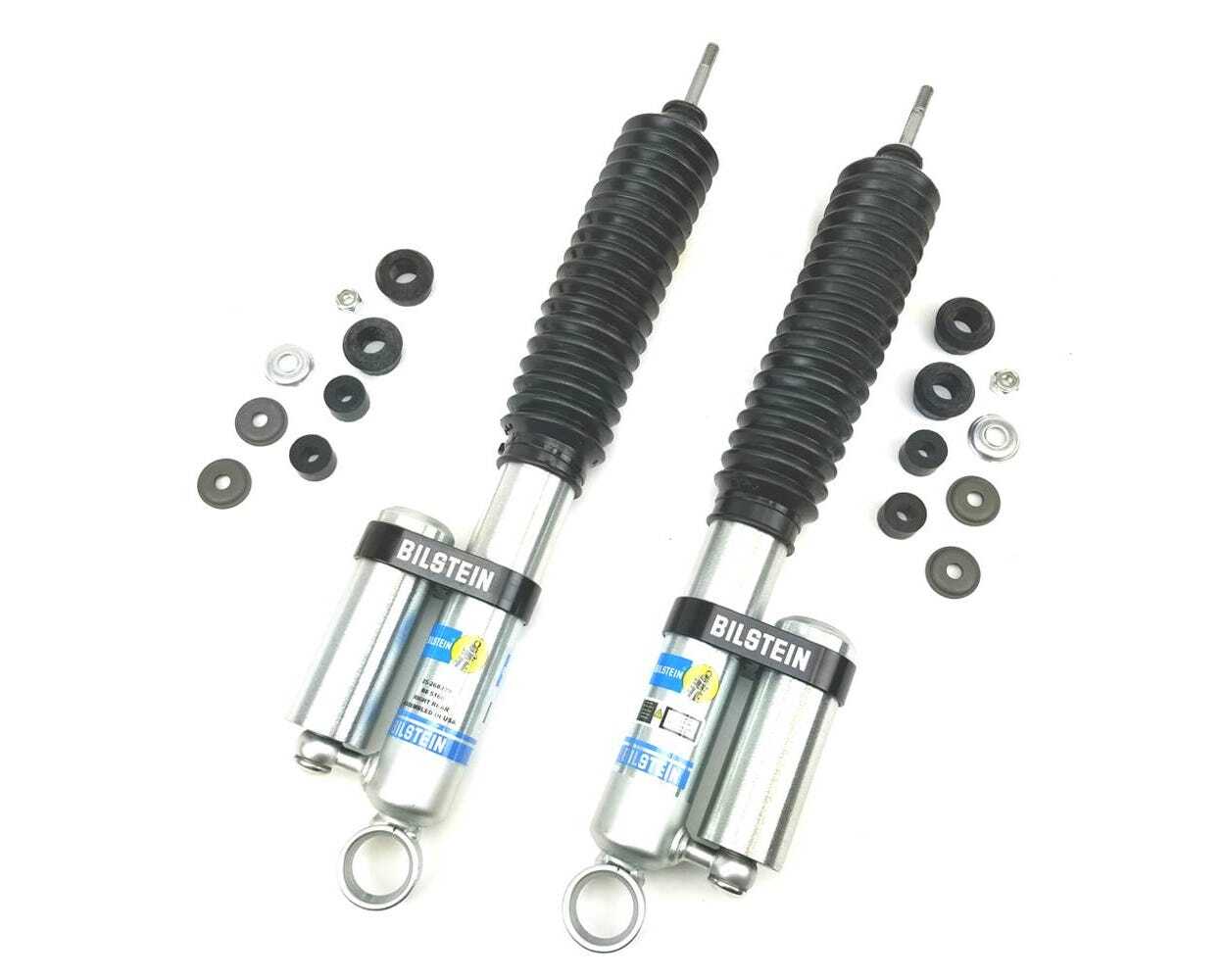

• (2) Bilstein 5100 or RCD Adjustable Front Struts
• (2) Bilstein 5100 Standard or Extended Travel Rear Shocks


Front Shocks:

• Race Car Dynamics Shock (Original shock built for Bilstein before they created their own 3rd Gen 4Runner shock). More information can be found HERE.
• Both shocks are a great option! The RCD shocks have slightly more travel (0.1") and will provide slightly more lift (very minimal). Both shocks work well paired with the spring options offered on this kit.

Front Coils:

• 1.5" lift [ASC4121]
• 2.5-3" lift [ASC4131]
• 2.5-3" lift (100+ lbs additional front weight) [ASC4132]

Rear Shocks:

The long travel shock options utilize 4th Gen 4Runner Rear 5100 Bilstein shocks, which also work on 3rd Gen 4Runners and provide an extra 1" of travel compared to the standard 3rd Gen shocks. Please be aware that this can cause the spring to be loose at full flex and is not recommended with the 1.5" lift rear spring option. Extended rear brake lines and bump stops are recommended for this shock option.

Rear Coils:

• 1.5" lift [ASC4221]
• 2.5-3" lift [ASC4231]
• 2.5-3" lift (200+ lbs additional rear weight) [ASC4232]
• 3.5" lift (300+ lbs additional rear weight) [ASC4243]

Notes:

• Kits come unassembled unless an assembly option is selected. You can reuse your stock top hat and stem bushing/washers for installation on unassembled kits.
• All lift figures are based on lift averages; your setup may vary.
• 2WD lift heights may vary from estimated heights as the front end is lighter.
• Lift estimates are based on the front struts being set on the lowest perch. Raising the perch level on the front struts to gain more lift may cause damage to the struts as the springs are lifting springs. You are responsible for any damage to the strut that may occur. Any manufacturer's warranties are voided when going above the lowest perch while utilizing lifting springs.


Fits: 1996, 1997, 1998, 1999, 2000, 2001, 2002 Toyota 4Runner

Why Use American Spring Company (ASC)?

1. Uncompromising Quality: Each ASC coil spring is designed and manufactured in the USA to meet the highest quality and performance standards. ASC believes in delivering products that exceed customer expectations and withstand the rigors of off-roading. Designed with off-road lifting applications in mind, ASC offers exceptional American Made springs at an affordable price.
2. American Craftsmanship: Proudly made in the USA using premium quality USA steel, ASC products embody the essence of American ingenuity and craftsmanship. By supporting USA manufacturing and labor, ASC contributes to the growth of our nation's economy while creating a top-tier product.

Want to learn more about ASC? Visit their website HERE
